Product Item : KY-O-002
Category： Crane Outrigger pads
Density:0.94-0.98g/cm3
Raw material:100% Virgin HDPE
Product name:Outrigger pads
Tensile strength at break:34Mpa
INQUIRY EMAIL

PRODUCTS SPECIFICATION

PART	Part 1	Part 2	Part 3	Part
DIMENSION	6″ x 12″x 24″	6″ x 12″ x 12″	6″ x 7″ x 24″	6″ x 7″ x 24″
PRODUCT WEIGHT	24.9kg	12.02kg	12.24kg	10.43kg
WORKING LOAD	110,000kg	55,000kg	58,800kg	49,900kg
LANYARD	Lanyard on two sides of block

ITEM	Test method	Test result	Unit
Molecular weight	ASTM D4020	3-4.5	1E6 g/mol
Density	ISO1183-1	0.93-0.96	g/cm3
Yield Strength	ASTM D-638	23	MPa
Ultimate Strength	ASTM D-638	45	MPa
Breaking Elongation	ISO527	>250	%
Impact Strength	ISO179	No breaking	Mj/mm2
Abrasion	ISO15527	83	Steel=100
Shore Hardness	ISO 868	65	Shore D
Friction Coeffieient	ASTM D-1894	0.11	Unitless
Cofficient of thermal expansion	ASTM D-696	0.0002	℃
Melt point	ASTM D-3417	138	℃

APPLICATION

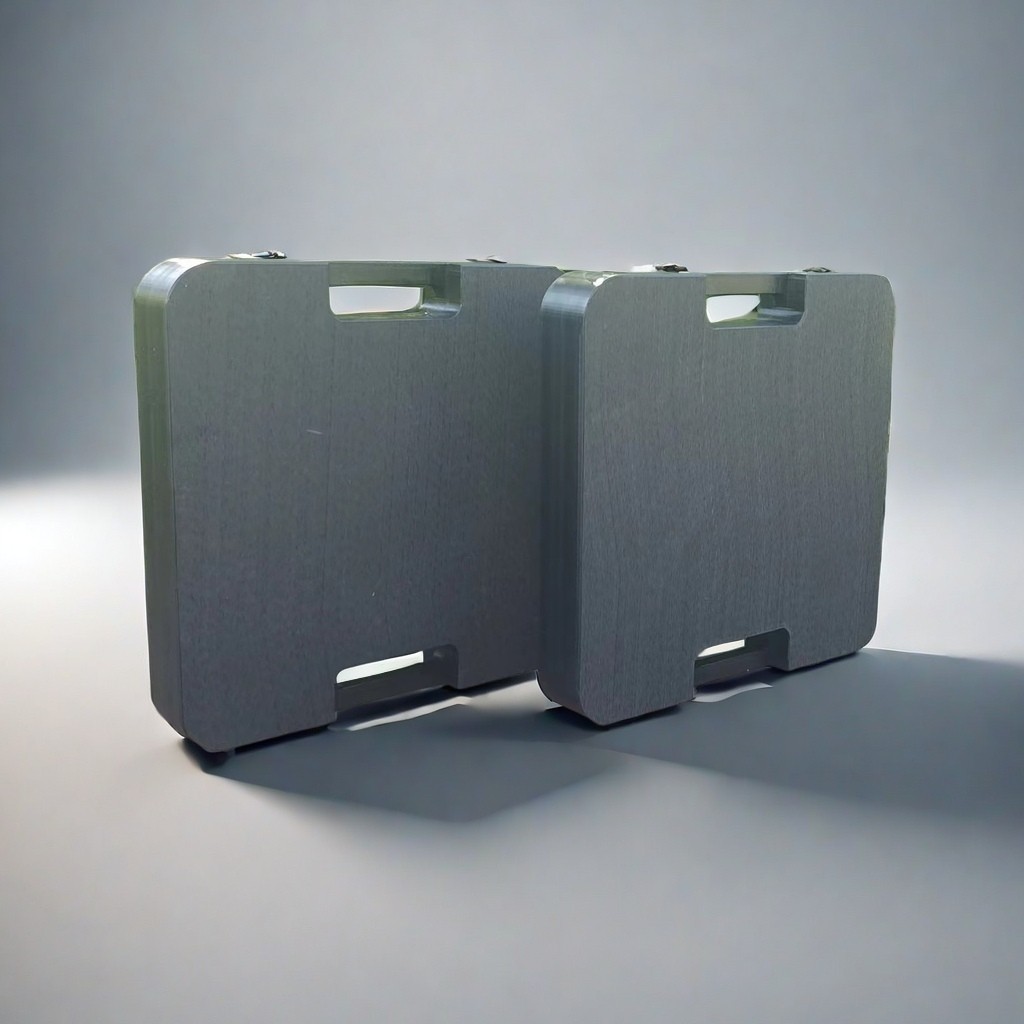

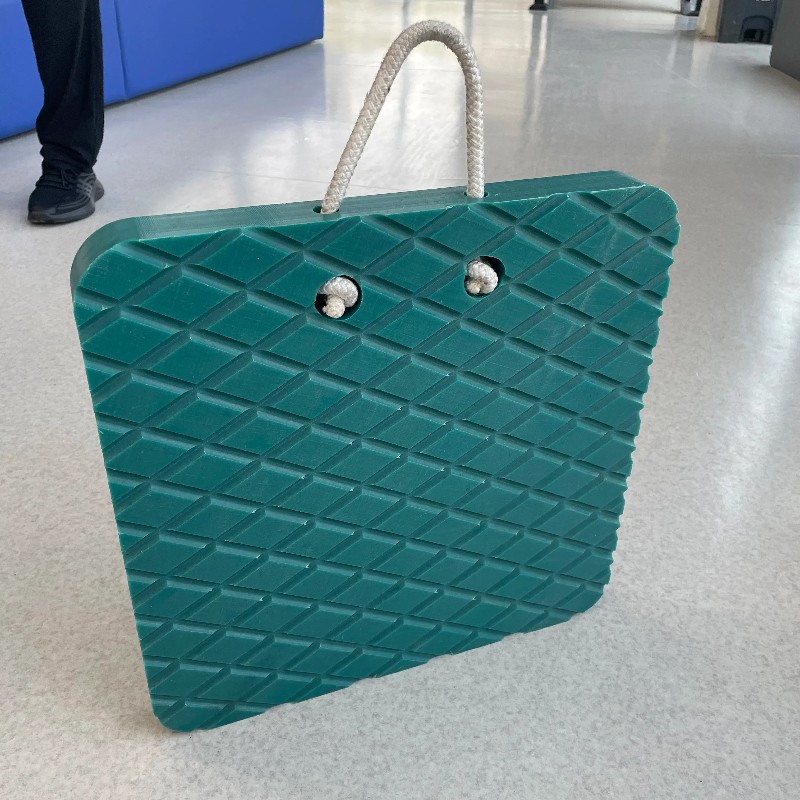

Features of Portable and rigid Crane outrigger pads

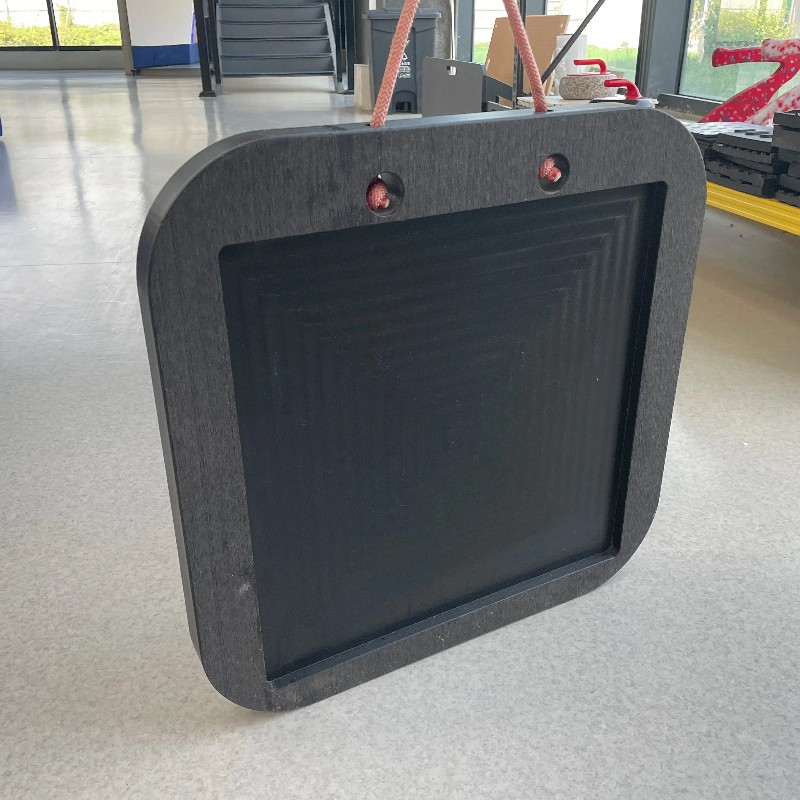

Round/rectangle machined recess to help contain foot or safety texture-non slip surface
Made from extremely high quality, high molecular weight polyethylene (HMWP)
Offers protection against water, corrosion and splintering
Light as well as retains its shape under extreme vertical pressure due to the in-built memory
Rope or Wire Handles Included makes it easy to handle CUSTOM Sizes, colors and Shapes Available
Save Time, Save Money… Save Your Strength!
