Product Item : KY-G-005
Category： Light Duty Ground Mats
INQUIRY EMAIL

Products Description

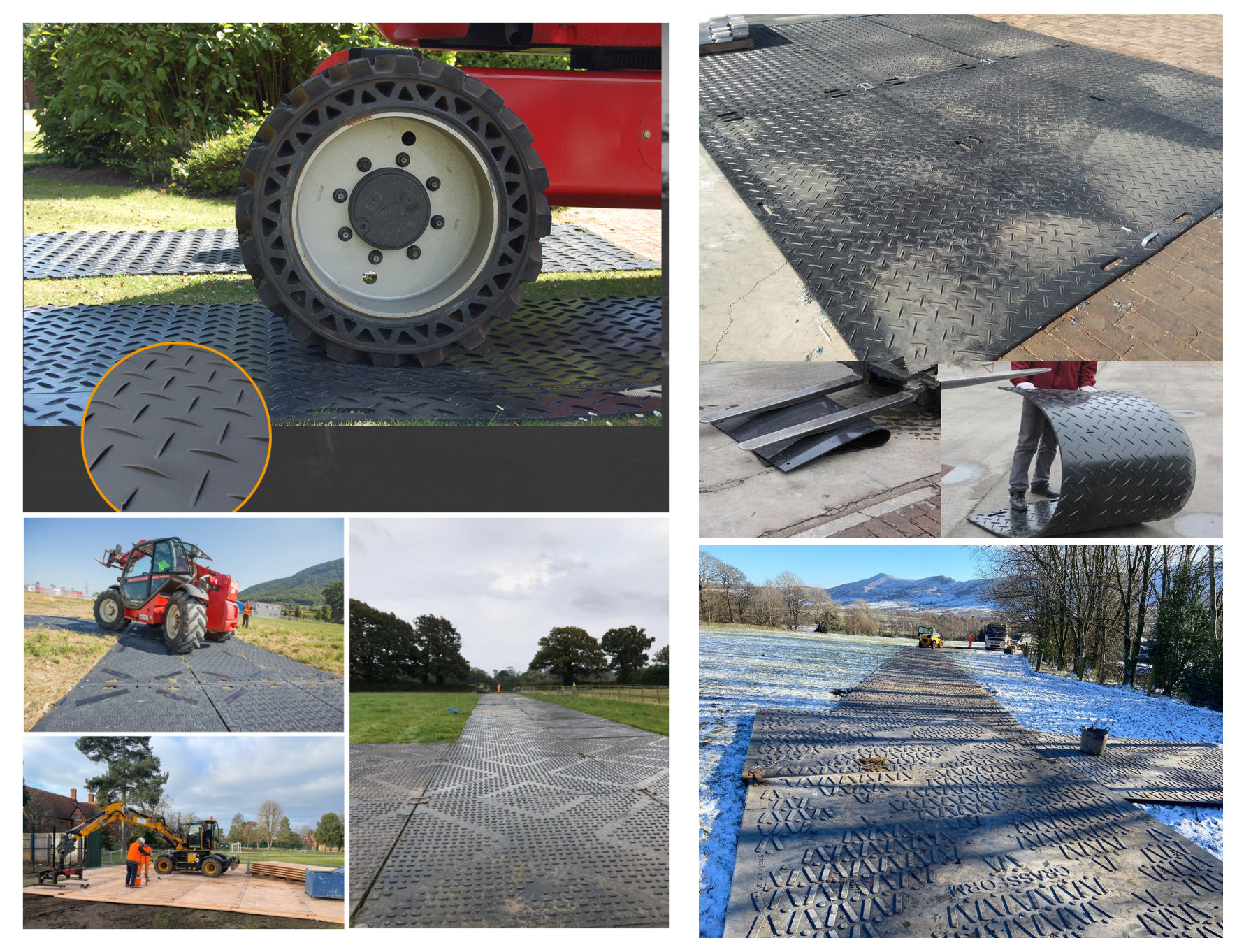

Kaiyuan light duty ground protection mats are perfect for allowing access and gaining traction to construction sites for rubber tracked and tyred vehicles from cars, vans, JCB,cranes,HGVs up to 80tons(Static load). Also they are ideal for ground protection and pedestrian foot paths over soft or sensitive ground,sand,mud,turf,marshy areas at any event.

Kaiyuan Ground Protection Mats Features:

* 100% Virgin high-density polyethylene (HDPE)

* Diamond cleat tread surface provides impressive grip

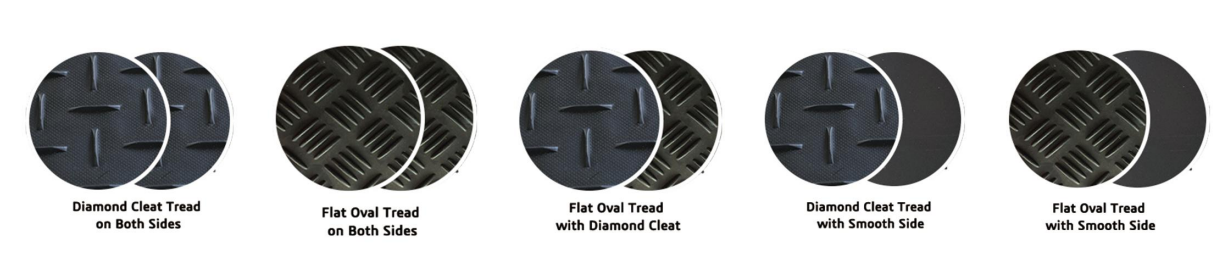

* Different patterns are available for different site conditions.

* Optional hand holes for easy manoeuvrability

* Supports loads up to 120 tons*

* Available in black,white,yellow,red,green or other customized color.

* Contours to different ground conditions due to its flexible design

HDPE Ground protection Mat:

Series No.	Size (mm)	Thickness with texture (mm)	Unit weight (kg)	Effective Surface Area (sqm)	Load Capacity (tons)
XE01	2000100010	20	22.6	2.00	30
XE02	2440122012.7	22.7	42	2.98	60
XE03	5900200028	36	346	11.80	120
XE04	2900110012.7	22.7	45	3.20	50
XE05	3000150015	25	74	4.50	80
XE06	3000200020	28	128	6.00	100
